MSI GeForce RTX 5070 Ti 16G Ventus 3X OC, 16GB GDDR7, HDMI, 3x DP
Produktinformationen "MSI GeForce RTX 5070 Ti 16G Ventus 3X OC, 16GB GDDR7, HDMI, 3x DP"
Die MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC ist eine High-End-Grafikkarte mit der GeForce RTX 5070 Ti GPU von NVIDIA. Die leistungsfähigen GeForce RTX 50-Grafikkartenserie basiert auf der NVIDIA Blackwell Architektur und bietet neue Stufen von Gaming Realismus, Geschwindigkeit und Leistungseffizienz, AI Features wie Frame Generation, Multi Frame Generation und realistische VR-Erlebnisse. Weitere Features sind Real-Time Ray Tracing, Ray-Reconstruction, NVIDIA Ansel, mit umfangreichen Werkzeugen zur Erstellung von Screenshots in Spielen sowie NVIDIA G-SYNC, G-SYNC HDR, NVIDIA DLSS 4, ShadowPlay, Highlights, NVENC Gen 9, AV1 Encoder und Decoder. Die auf der MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC verbaute GPU verfügt über 8960 CUDA Cores. Der 16 Gbyte große GDDR7-Speicher verfügt über einen 256-Bit-Speicherkontroller.
Art.-Nr.: 100111973
Details
Details
- Modell: NVIDIA GeForce RTX 5070 Ti
- Speicher: 16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/s
- Takt Basis: 2300MHz (Standard-Profil)
- Takt Boost: 2482MHz (Standard-Profil), 2497MHz (OC-Profil)
- Übertaktung: +47MHz Boost (OC-Profil), +32MHz Boost (Standard-Profil)
- Kühlung: 3x Axial-Lüfter (90mm) mit 0dB-Zero-Fan-Modus
- TDP/TGP: 300W (NVIDIA)
- AI-Rechenleistung: >1406 TOPS
- GPU-Rechenleistung: 44.75 TFLOPS (FP16), 44.75 TFLOPS (FP32), 0.7 TFLOPS (FP64)
- Stromanschlüsse. 1x 12V-2x6 (via Adapter: 2x 8-Pin PCIe)

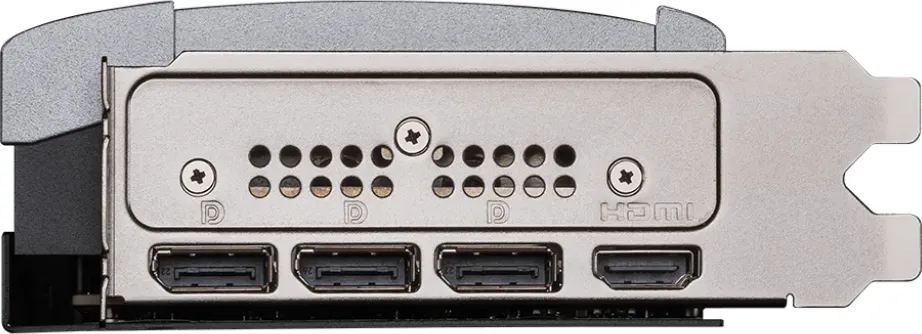

- Anschlüsse: 1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
- Anbindung: PCIe 5.0 x16
- Besonderheiten: AI-Beschleunigung, Taktprofile, Backplate, NVIDIA GeForce SFF-Ready, Grafikkarten-Halterung
- Gesamthöhe. Triple Slot (2.5 Slots)
- Abmessungen. 303x121x49mm (LxBxH), Gewicht: 1.07kg
- Bauform. PCIe-Karte (full height)
- Slotblende: full height
- Chip-Bezeichnung: GB203-300
- Chip-Konfiguration: 70SM (8960SP / 336TMU / 128ROP), 70 RT Cores, 280 Tensor Cores, 64MiB L2-Cache
- Chip-Fertigung: TSMC 4nm
- Chip-Größe: 378mm², monolithisch, 45.6 Mrd. Transistoren
- Chip-Funktionen: Raytracing (4th Gen NVIDIA RTX, 133 TFLOPS), NVIDIA Tensor (5th Gen, 1406 TOPS), HDCP 2.3
- API-Unterstützung: DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8
- Transcoding-Engine: 2x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info
- Encoding: AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
- Decoding. AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
- Multi-GPU-Anbindung. -
- Grafik: NVIDIA GeForce RTX 5070 Ti - 16GB GDDR7 - Desktop
